Description

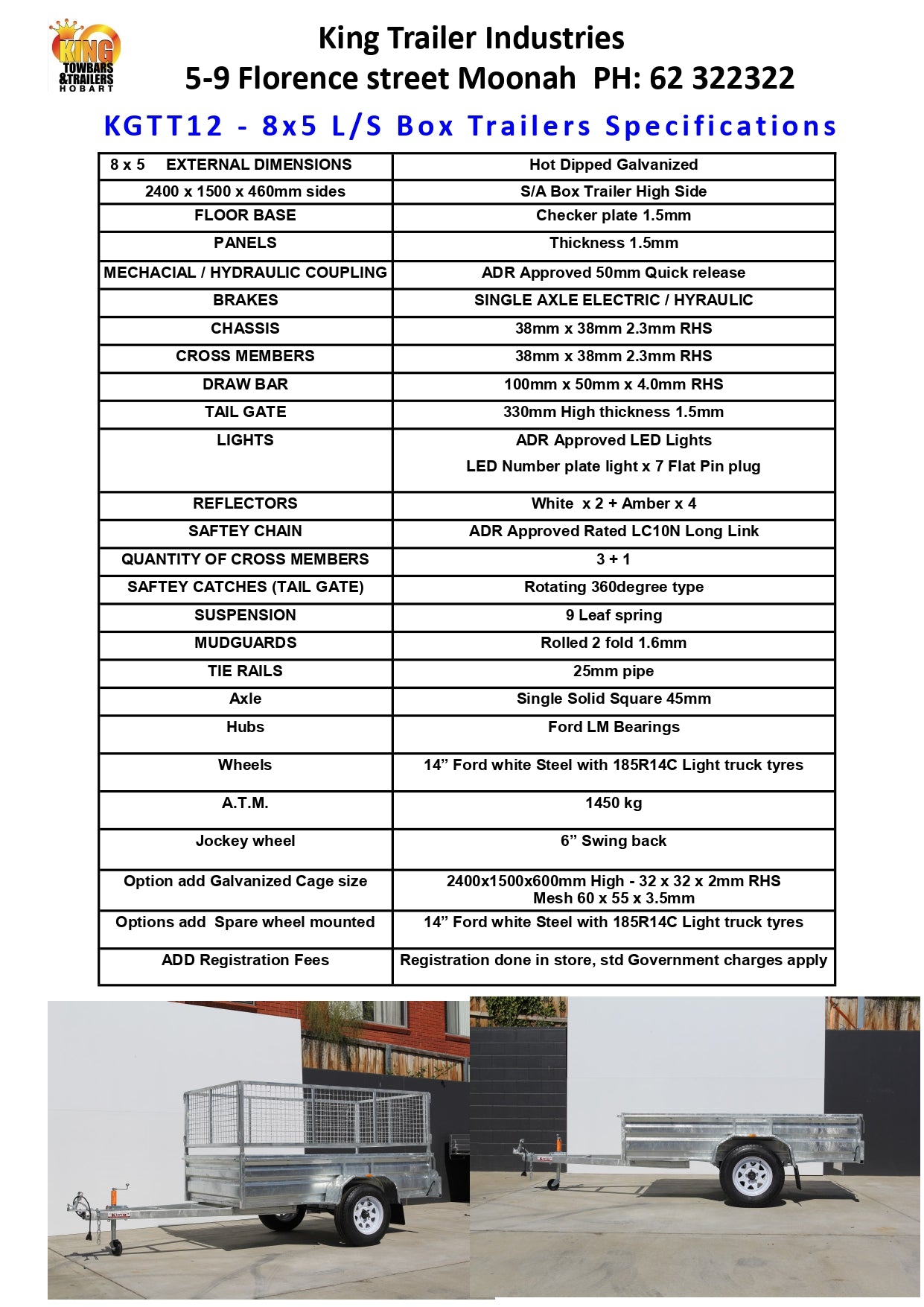

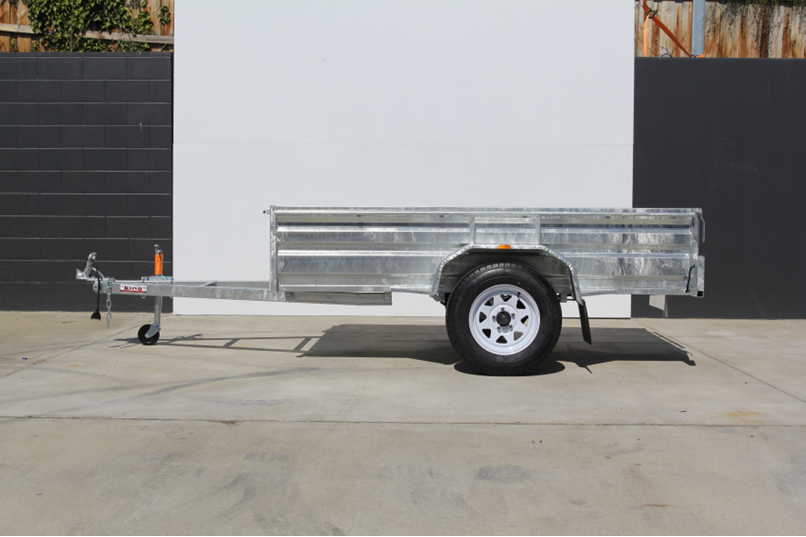

Single Axle Box Trailer in galvanised finish
- 8 x 5 EXTERNAL DIMENSIONS Hot Dipped Galvanized
- 2400 x 1500 x 460mm sides S/A Box Trailer High Side
- FLOOR BASE: Checker plate 1.5mm
- PANELS: Thickness 1.5mm
- MECHANICAL / HYDRAULIC COUPLING: ADR Approved 50mm Quick release
- BRAKES: Single Axle Electric / Hydraulic
- CHASSIS: 38mm x 38mm 2.3mm RHS
- CROSS MEMBERS: 38mm x 38mm 2.3mm RHS
- DRAW BAR: 100mm x 50mm x 4.0mm RHS
- TAIL GATE: 330mm High thickness 1.5mm
- LIGHTS: ADR Approved LED Lights
- LED Number plate light: x 7 Flat Pin plug
- REFLECTORS: White x 2 + Amber x 4
- SAFETY CHAIN: ADR Approved Rated LC10N Long Link
- QUANTITY OF CROSS MEMBERS: 3 + 1
- SAFETY CATCHES (TAIL GATE): Rotating 360-degree type
- SUSPENSION: 9 Leaf spring
- MUDGUARDS: Rolled 2 fold 1.6mm
- TIE RAILS: 25mm pipe
- AXLE: Single Solid Square 45mm
- HUBS: Ford LM Bearings
- WHEELS: 14” Ford white Steel with 185R14C Light truck tyres
- A.T.M.: 1450 kg
- Jockey wheel: 6” Swing back
Options:

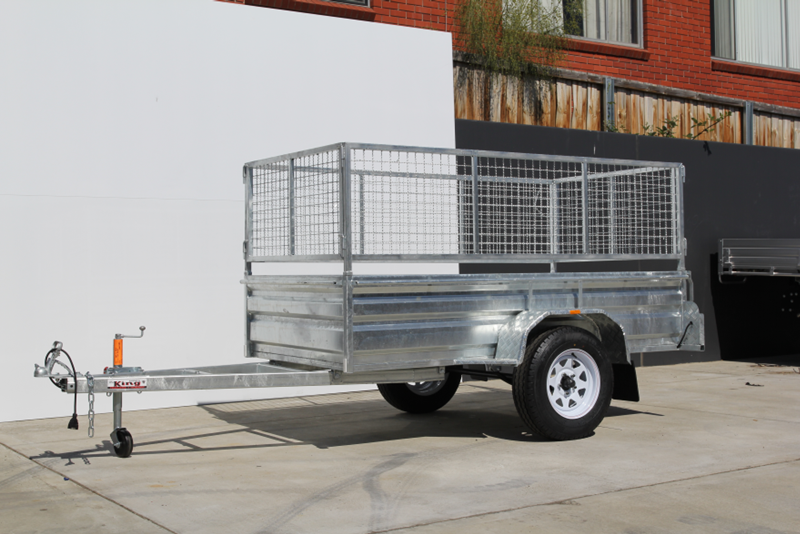

- Add Galvanized Cage: Size 2400 x 1500 x 600mm High - 32 x 32 x 2mm RHS
- Mesh: 60 x 55 x 3.5mm
- Add Spare wheel mounted: 14” Ford white Steel with 185R14C Light truck tyres
- Add Registration Fees: Registration done in store, standard government charges apply
